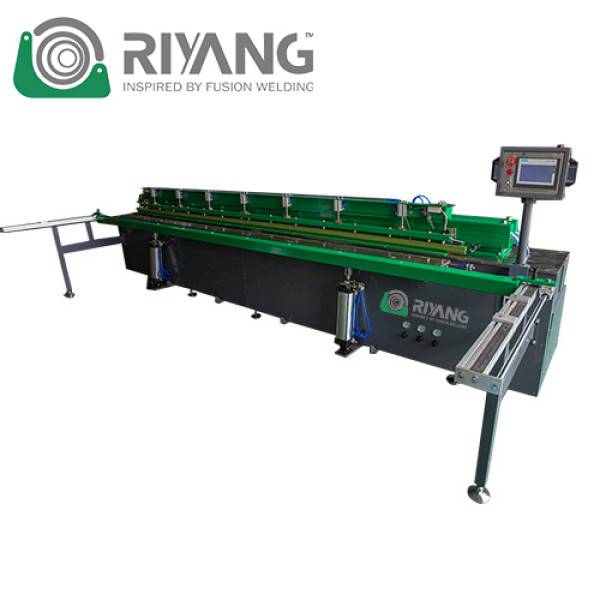

Plastic Sheet Butt Fusion & Bending Welding Machine RPZ Series
|
Product Details
|
|||||||||||||||||
|
MODEL
|
RPZ1500
|
RPZ2000
|
RPZ3000
|
RPZ4000
|
RPZ4500
|
RPZ5000
|
RPZ6000
|
||||||||||
|
MAX. WORKING LENGTH
|
1500MM
|
2000MM
|
3000MM
|
4000MM
|
4500MM
|
5000MM
|
6000MM
|
||||||||||
|
SHEET THICKNESS
|
3-20MM
|
3-25MM
|
3-25MM
|
3-30MM
|
3-30MM
|
3-30MM
|
3-30MM
|
||||||||||
|
PRESSURE SETTING METHOD
|
DIGITAL
|
DIGITAL
|
DIGITAL
|
DIGITAL
|
DIGITAL
|
DIGITAL
|
DIGITAL
|
||||||||||
|
PRESSURE CONTROLLER
|
SMC ELECTRIC PROPORTIONAL VALVE
|
SMC ELECTRIC PROPORTIONAL VALVE
|
SMC ELECTRIC PROPORTIONAL VALVE
|
SMC ELECTRIC PROPORTIONAL VALVE
|
SMC ELECTRIC PROPORTIONAL VALVE
|
SMC ELECTRIC PROPORTIONAL VALVE
|
SMC ELECTRIC PROPORTIONAL VALVE
|
||||||||||
|
BENDING LENGTH
|
1500MM
|
2000MM
|
3000MM
|
4000MM
|
4500MM
|
5000MM
|
6000MM
|
||||||||||
|
BENDING THICKNESS
|
3-15MM
|
3-20MM
|
3-25MM
|
3-25MM
|
3-25MM
|
3-30MM
|
3-30MM
|
||||||||||
|
POWER CONSUMPTION
|
3KW
|
4KW
|
6KW
|
9KW
|
9KW
|
10KW
|
12KW
|
||||||||||
|
COMPRESSED AIR CONNECTION (bar)
|
6-8 KG/CM2
|
||||||||||||||||
|
SHEET LOCKING CLAMPS
|
PNEUMATIC
|
||||||||||||||||
|
WELDING SYSTEM
|
CNC
|
||||||||||||||||
|
2
|
–
Featured by
– Our patented design, plastic sheet bending, and welding integrated machine.
– Bending angle adjustable 0-95 °. suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…)
– The new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
– Control system Siemens PLC, 7-inch color touch screen.
– Data parameters are automatically selected according to the material a particular welding pressure, temperature, and time.
– 3mm-30mm welding capabilities, special welding thickness up to 40mm, 60mm.
–
