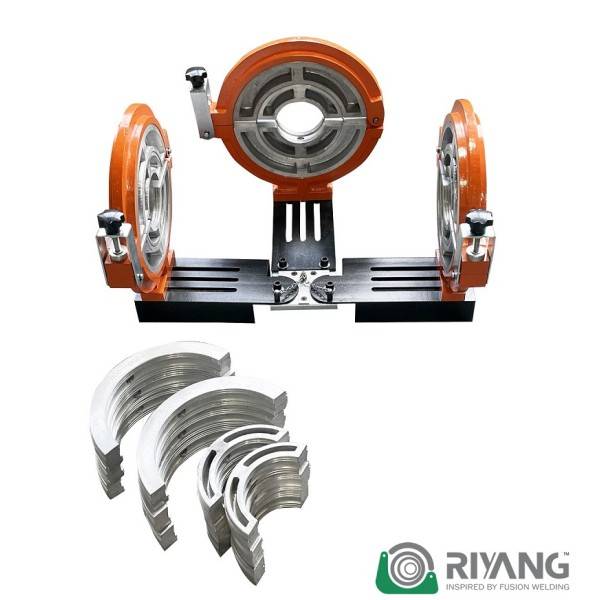

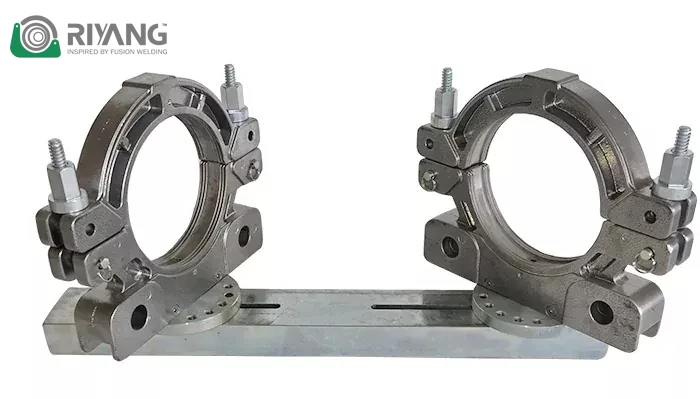

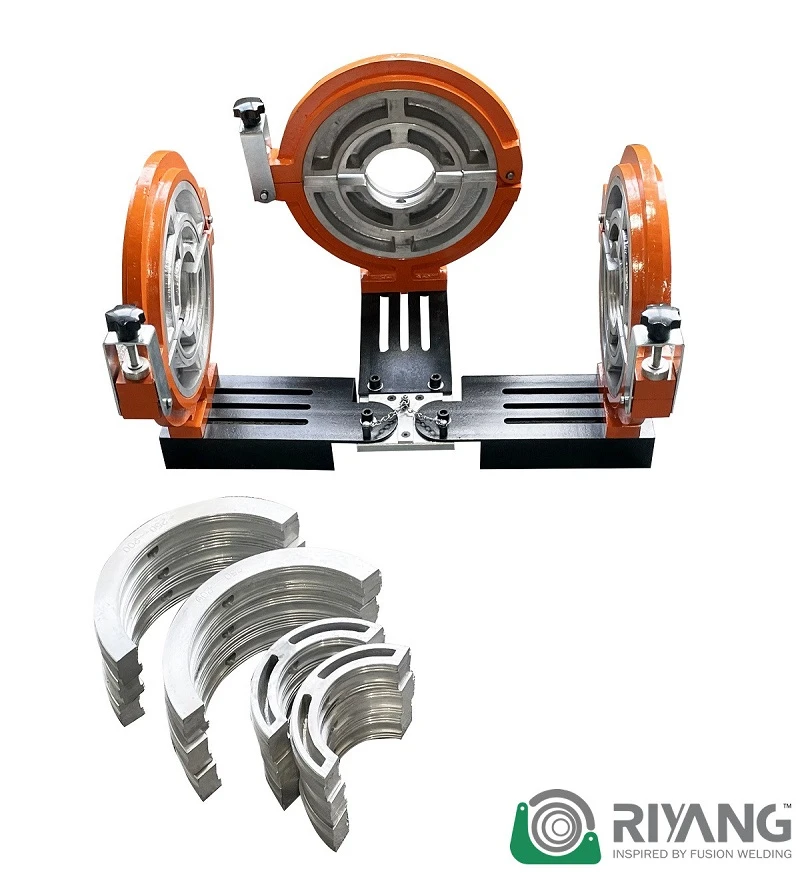

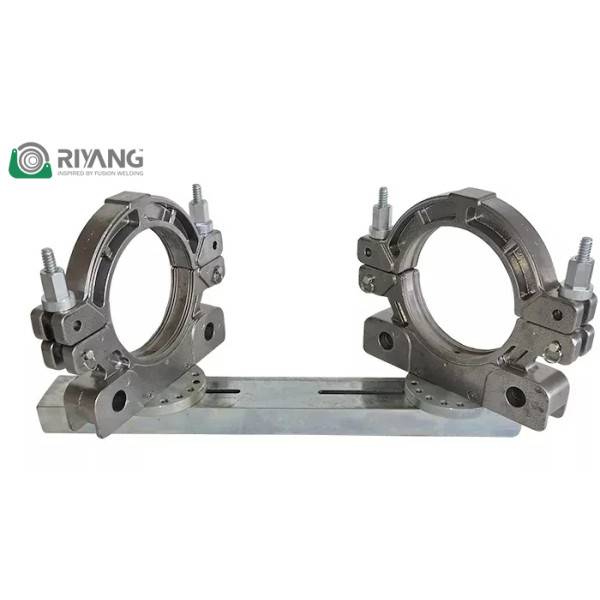

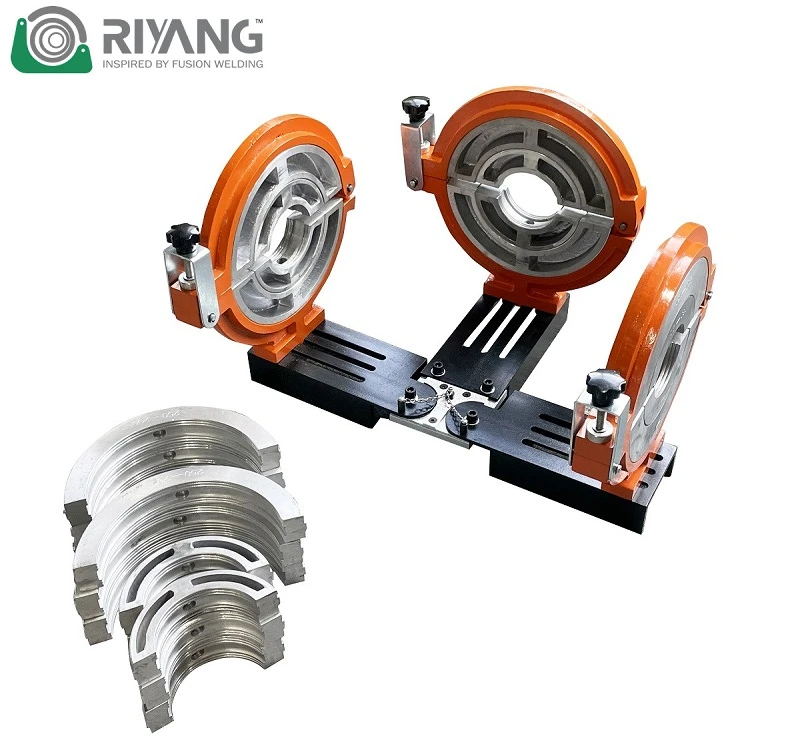

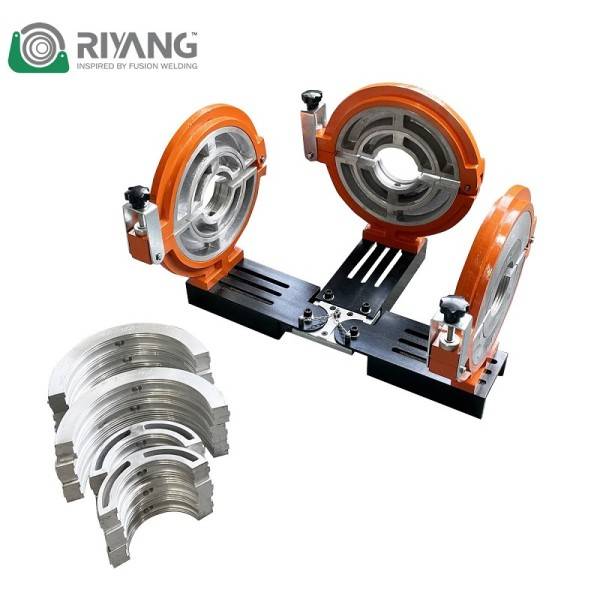

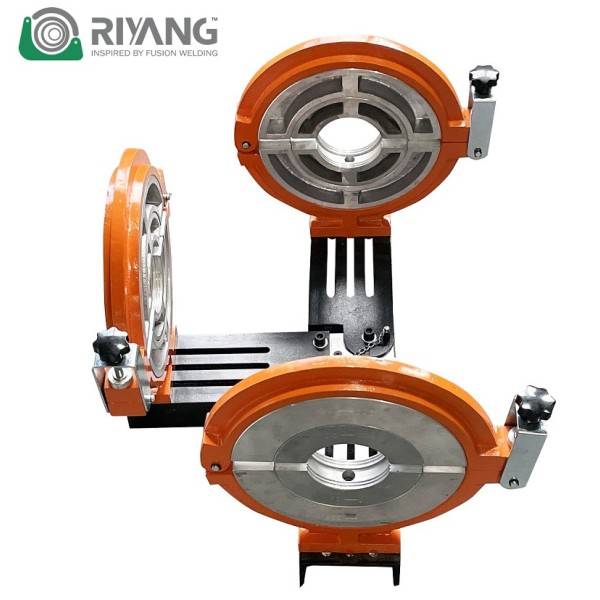

Pipe Alignment Tool
◆ The tool is entirely made of steel, featuring a central adjustable joint and pipe fastening clamps fixed on axes.
–
◆ The adjustable joint can be set on 4 different working positions to allow welding at preset angles such as 45°, 90°, “inline” and T welding.
–
◆ Axes have V-shaped clamps positioned on them, which are equipped with pipe fastening belts. The system, along with fixing the pipe to the clamp, serves also as a centering device.
–
◆ Each axis has 2 guides on which the clamps can slide.
–

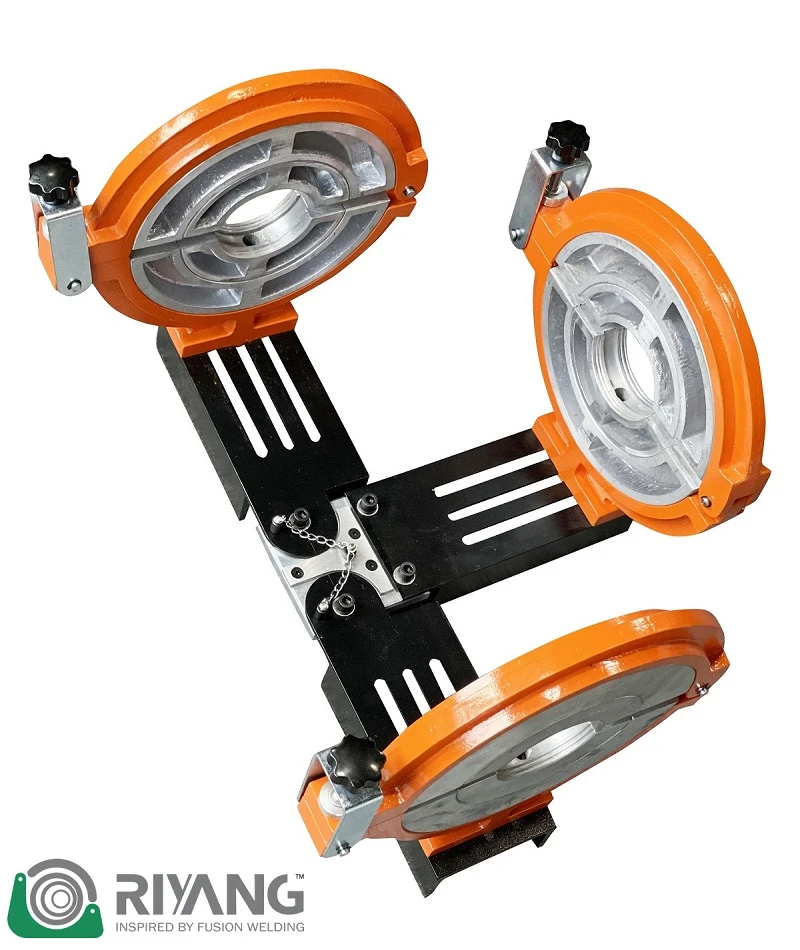

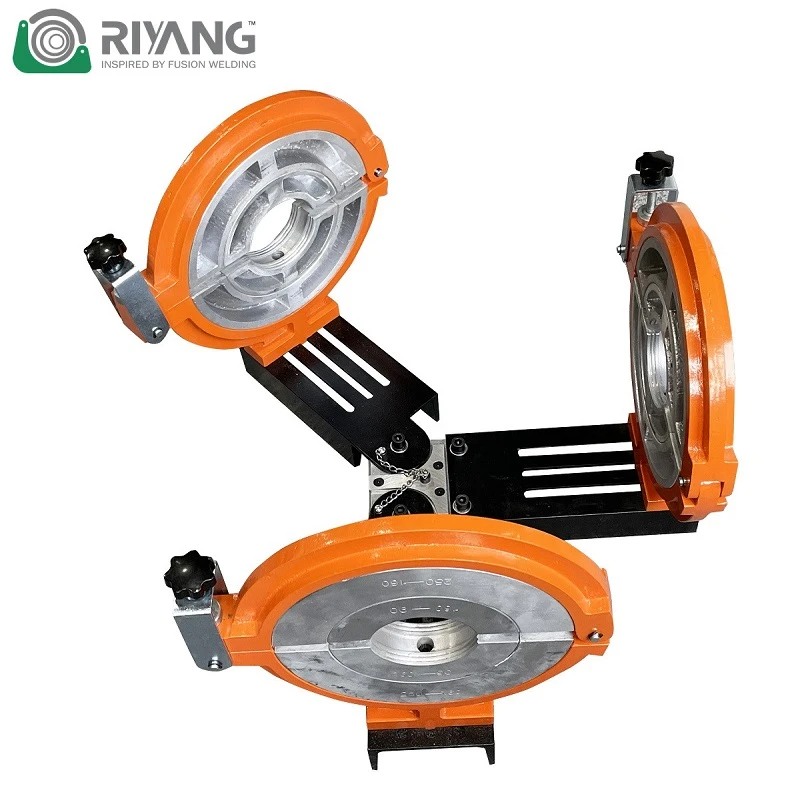

◆ The aligner is available in two configurations: 2 axes and 3 axes (to weld T fittings).
–
–
–
