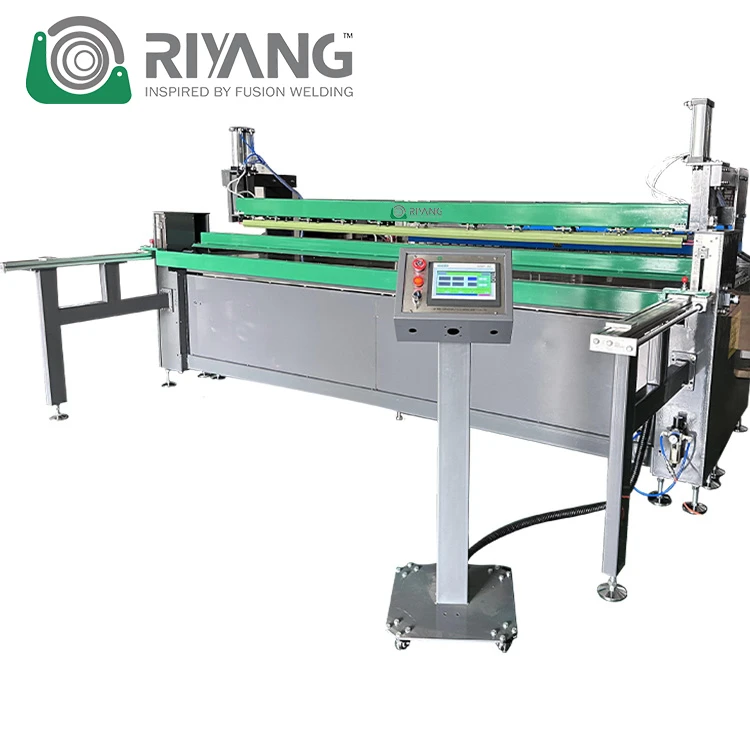

Plastic Sheet Bending Machine RZW Series
|
Product Details
|
||||||||
|
MODEL
|
RZW1500
|
RZW2000
|
RZW3000
|
RZW4000
|
RZW4500
|
RZW5000
|
RZW6000
|
RZW7000
|
|
BENDING LENGTH
|
1500MM
|
2000MM
|
3000MM
|
4000MM
|
4500MM
|
5000MM
|
6000MM
|
7000MM
|
|
BENDING THICKNESS
|
3MM-12MM
|
3MM-15MM
|
3MM-20MM, PVC* 3-15MM
|
3MM-20MM, PVC* 3-15MM
|
3MM-20MM, PVC* 3-15MM
|
3MM-20MM, PVC* 3-16MM
|
3MM-20MM, PVC* 3-17MM
|
3MM-50MM
|
|
POWER CONSUMPTION
|
3KW
|
4KW
|
6KW
|
8KW
|
9KW
|
12KW
|
12KW
|
14KW
|
|
TIMING
|
YES
|
|||||||
|
SHEET LOCKING CLAMPS
|
PNEUMATIC
|
|||||||
|
WELDING SYSTEM
|
CNC
|
|||||||
|
COMPRESSED AIR CONNECTION (bar)
|
6-8 KG/CM2
|
6-9 KG/CM2
|
6-10 KG/CM2
|
6-11 KG/CM2
|
6-8 KG/CM2
|
6-9 KG/CM2
|
6-10 KG/CM2
|
6-11 KG/CM2
|
|
2
|
–
Featured by
– Economic and cost-efficient entry into the bending and edging technology.
– Material thickness capability from 2 mm to 25mm suitable for all types of thermoplastic sheets (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…).
– Angle capability ranges from 0° to 95° depending on heating element configuration.
– User-friendly concept of operation with a 7″ touch-screen.
– Removal of bent channels and profiles is made considerably easier, safer, and more efficient.
–
