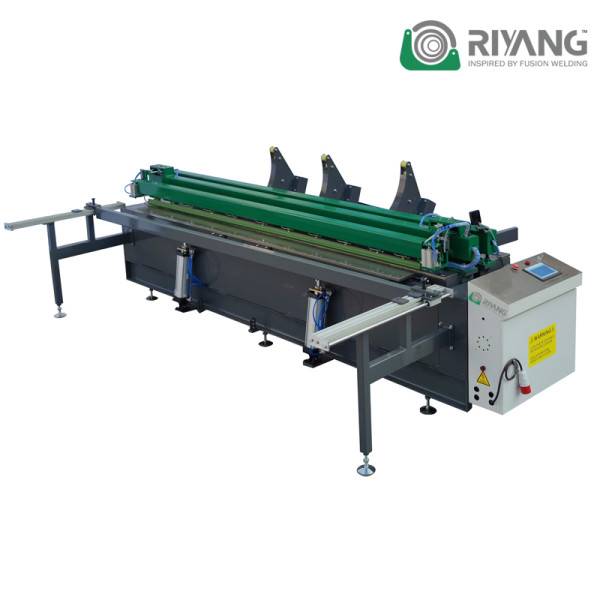

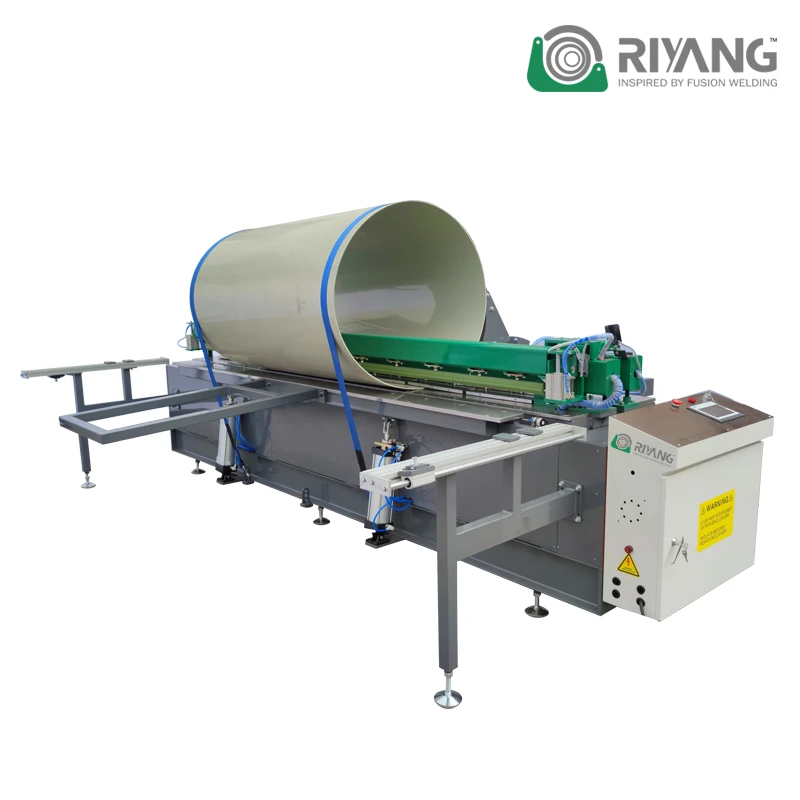

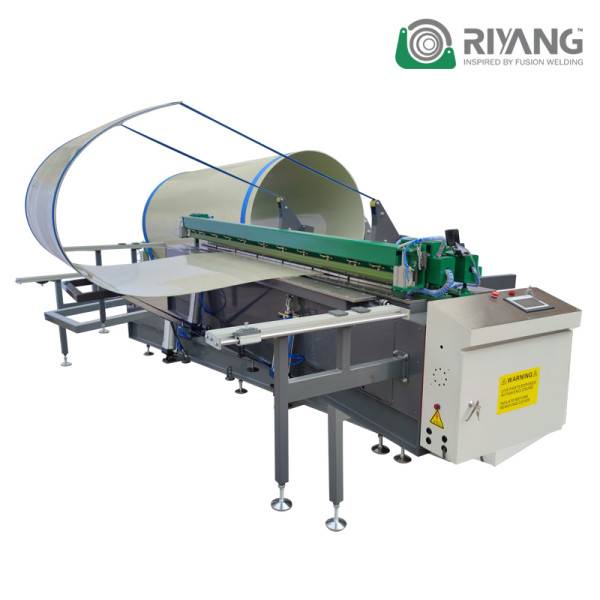

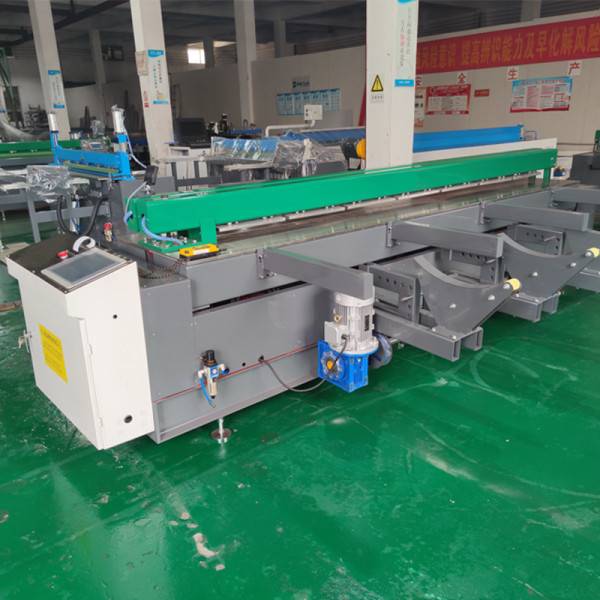

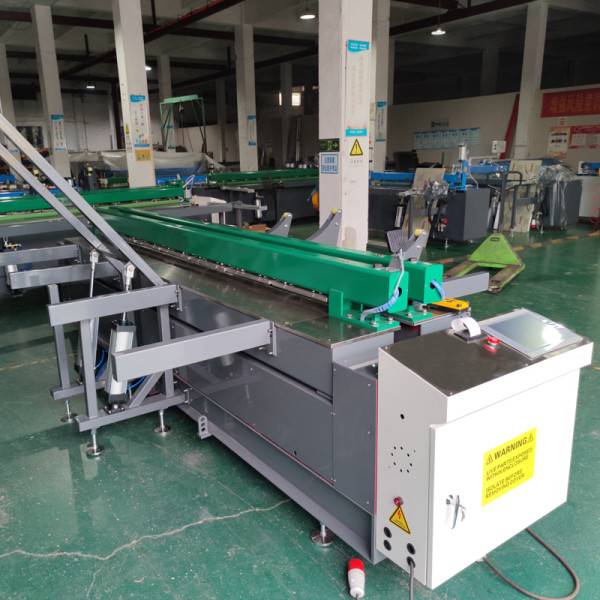

Plastic Sheet Butt Welding Machine RPH Series
|
Product Details
|
|||||||||
|
MODEL
|
RPH1500
|
RPH2000
|
RPH3000
|
RPH4000
|
RPH4500
|
RPH5000
|
RPH6000
|
RPH7000
|
|
|
MAX WORKING LENGTH
|
1500MM
|
2000MM
|
3000MM
|
4000MM
|
4500MM
|
5000MM
|
6000MM
|
7000MM
|
|
|
SHEET THICKNESS
|
3MM-20MM
|
3MM – 25MM
|
3MM – 25MM
|
3MM – 30MM
|
3MM – 30MM
|
3MM – 30MM
|
3MM – 30MM
|
3MM – 30MM
|
|
|
POWER CONSUMPTION
|
3KW
|
4KW
|
6KW
|
9KW
|
9KW
|
9KW
|
12KW
|
12KW
|
|
|
COMPRESSED AIR CONNECTION(bar)
|
6-8 KG/CM2
|
||||||||
|
SHEETING LOCKING CLAMPS
|
PNEUMATIC
|
||||||||
|
WELDING SYSTEM
|
CNC
|
||||||||
Featured by
– New steel structure, the mechanical synchronous transmission technology, through the pressure regulating valve, pressure in the weld region to achieve uniform.
– High-density locking clamps that provide a homogeneous pressure distribution
– Compliant with welding standards DVS 2207. Suitable for all types of thermoplastic sheets (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF…).
– The Control system adopts Siemens PLC, with an intuitive touch screen.
– According to the materials data select specific welding pressure and temperature.
– 3mm-30mm welding ability, special welding thickness up 40 to 60mm.
– Led lights through the entire welding area.
More Options
– 90°-welding device
– Automatic cylinder welding
– T welding
– Splitting of clamping area into two or more areas
– Remote control (with cable)
– Signal horn
– USB interface to document the welding data on a USB stick
– Printer
